Transport research and laboratory tests

THURSDAY JUNE 21, 2001

A bridge with a known loading strength of 20 tonnes was taken to a 45 tonne load. The failure was due to the crushing of the brickwork (masonry) as predicted by analyses. It should be noted that this loading was the maximum the brickwork could sustain.

⚲

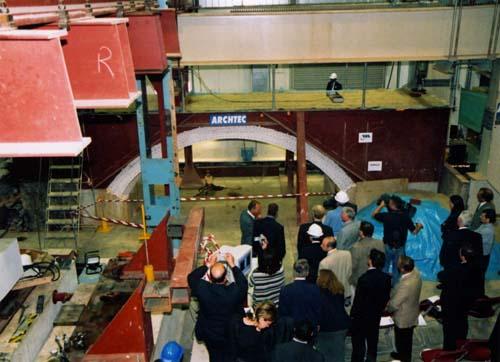

Figure 1: The assembled audience

⚲

Figure 2: Carl Brookes of Gifford & Partners explaining the procedures

⚲

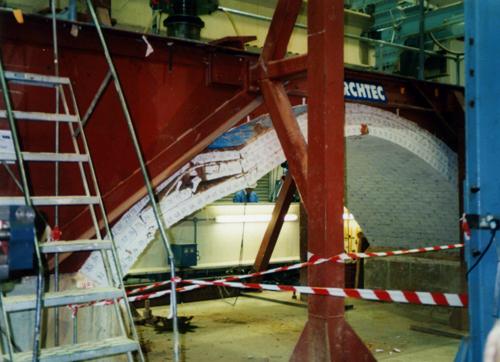

Figure 3: The Bridge

⚲

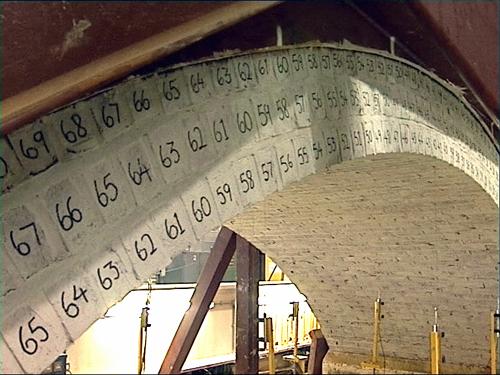

Figure 4: The Failure mechanism

⚲

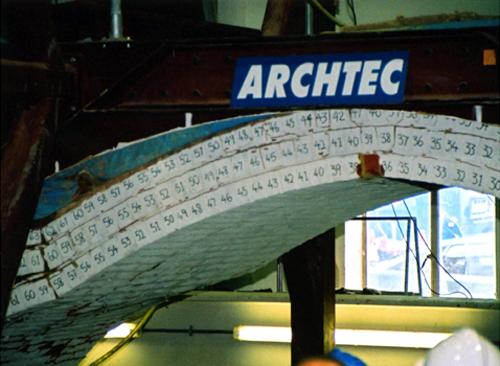

Figure 5: The Failure mechanism

LOAD TEST TO FAILURE ON A RING-SEPARATED ARCH REPAIRED USING CINTEC ANCHOR SYSTEM

by: S K Sumon
Unpublished Project Report
PR/CE/61/98
P6932

Click here to view/download the document in PDF format.

LOADING TO FAILURE OF AN ARCHTEC STRENGTHENED BRICK ARCH USING CINTEC™ MULTI-BAR ANCHORS

by: A Sexton and G I Crabb
PR/IS/59/01
P9493

Click here to view/download the document in PDF format.
